M1 Manual Control Valve is mainly used in the site where there is no electrical system or where precise control is not required.

The G6 Regulating and Cut-off Control Valve adopts the cage guided pressure balanced trim structure.Compared with the G1 series control valve, the only difference is that this series control valve adopts the soft seat structure, which can meet the requirements of the regulation and cutting in the same time.Inserting PTFE or RTFE soft seal material in the seat, it can achieve the zero leakage class.

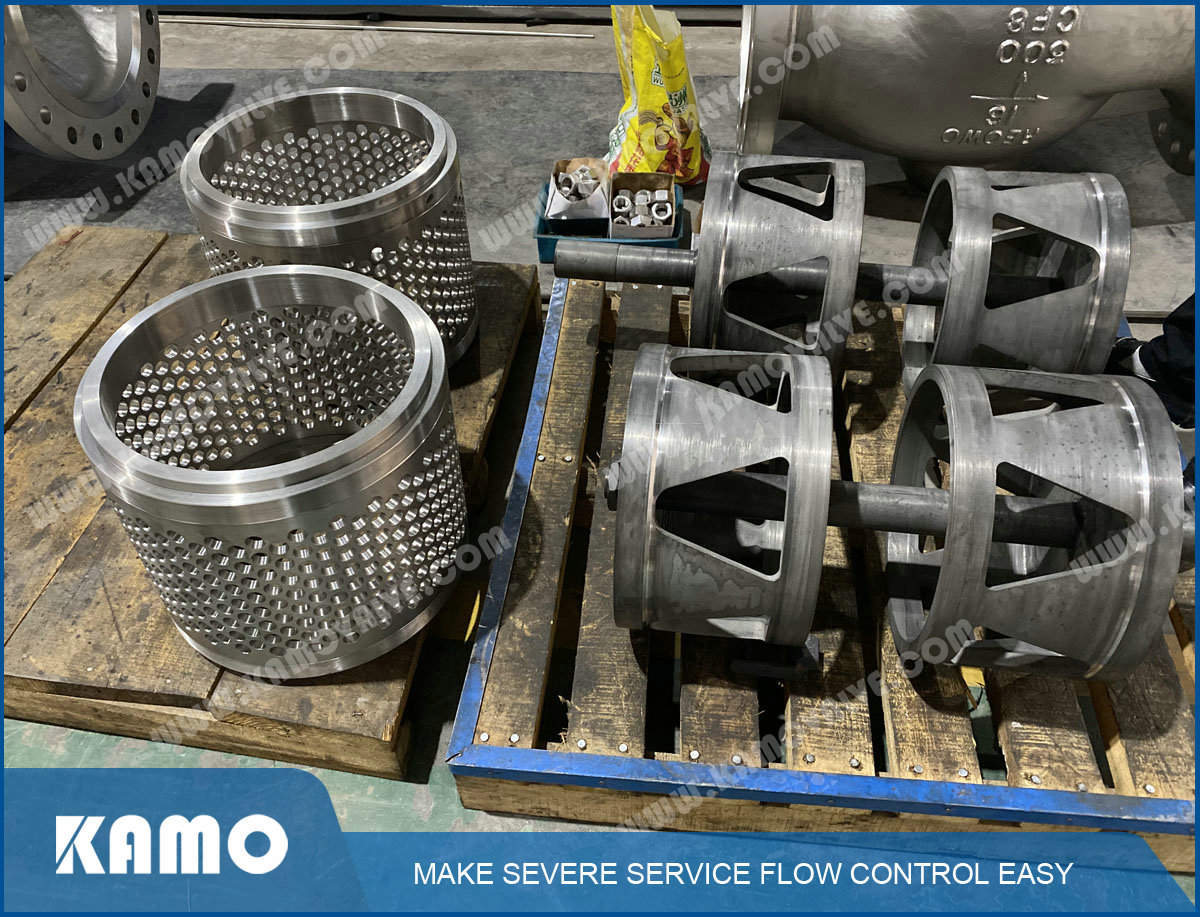

This Series provides control valves that meet low noise and anti-cavitation requirements by incorporating a multi-hole type cages, instead of the standard cages, in the cage guided control valves. All the parts except the

multi-hole cage are interchangeable with the parts of the G1 Series accordingly. For those severe fluid conditions that cannot be covered by this Series, please select KAMO multi-stage type control valves.

Note:This series can not been used in the medium contains large solid particles.

G2 Cage Guided Double Seated Control Valve.Compared with G1 series we using metal piston seaingl ring to replace balance sealing ring(Working temperature <230℃),in this way the cage guided double seated control valve can work in the condition of temperature over 230℃,but the seat leakage class performance of this series is lower than Cage Guided Single Seated Control Valve series.In addition to this the other performace are the same it is also fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug.

T2 Single Seated Control Valve(Balanced), Compared with KMP1 Series top guided single seated control valve, Its dynamic stability is better with balance sealing ring and could work smooth under higher pressure drop. Compared with cage guided single seated control valves, it’s better suited for applications involving fluid with entrained particles, and its trim will not be locked.

T1 Single Seated Control Valve have a top guided unbalanced trim structure,It is a compact and simple structure, easy operation and maintenance which can be used under various applications, especially under normal pressure and normal pressure drop. Valves of this type are the most economical and reliable. Valve trim of unbalanced structure only applies to lower pressure drop.
