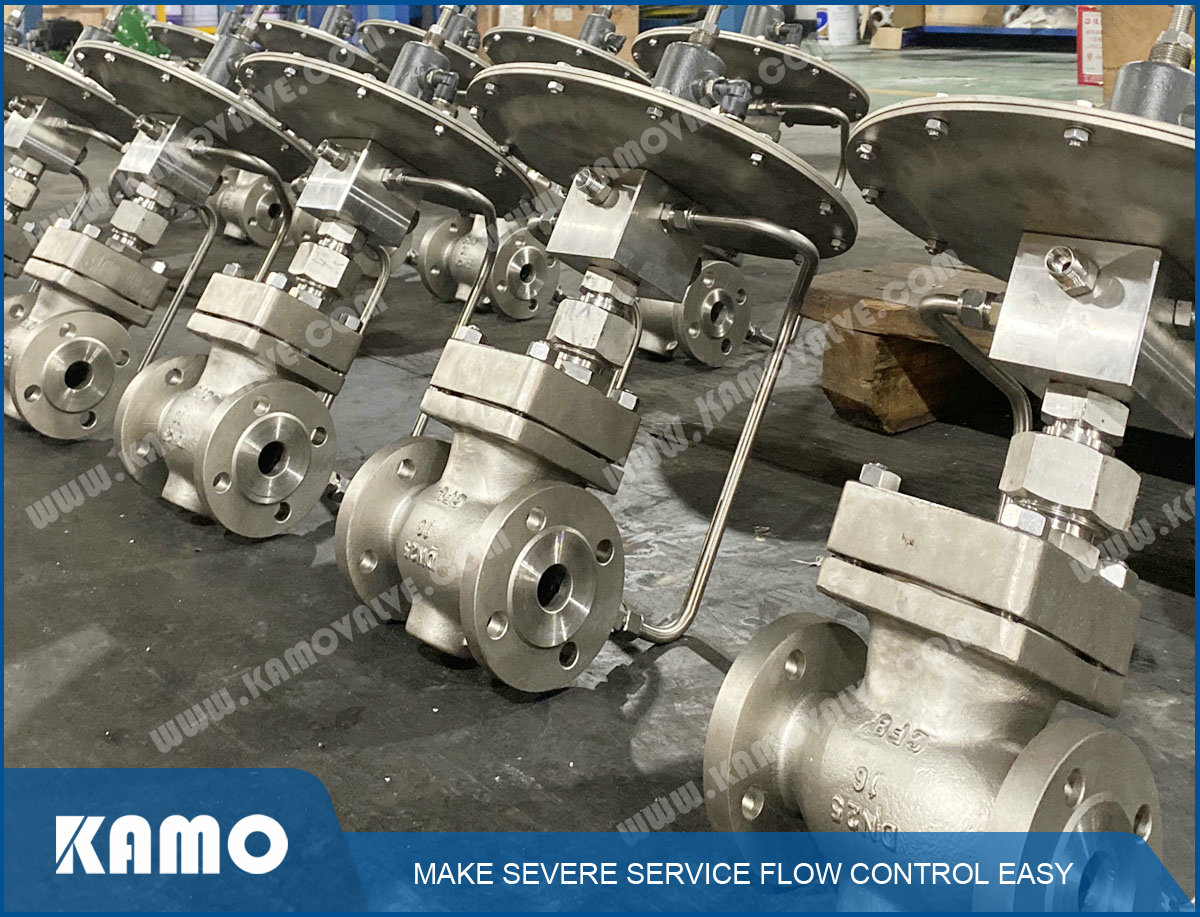

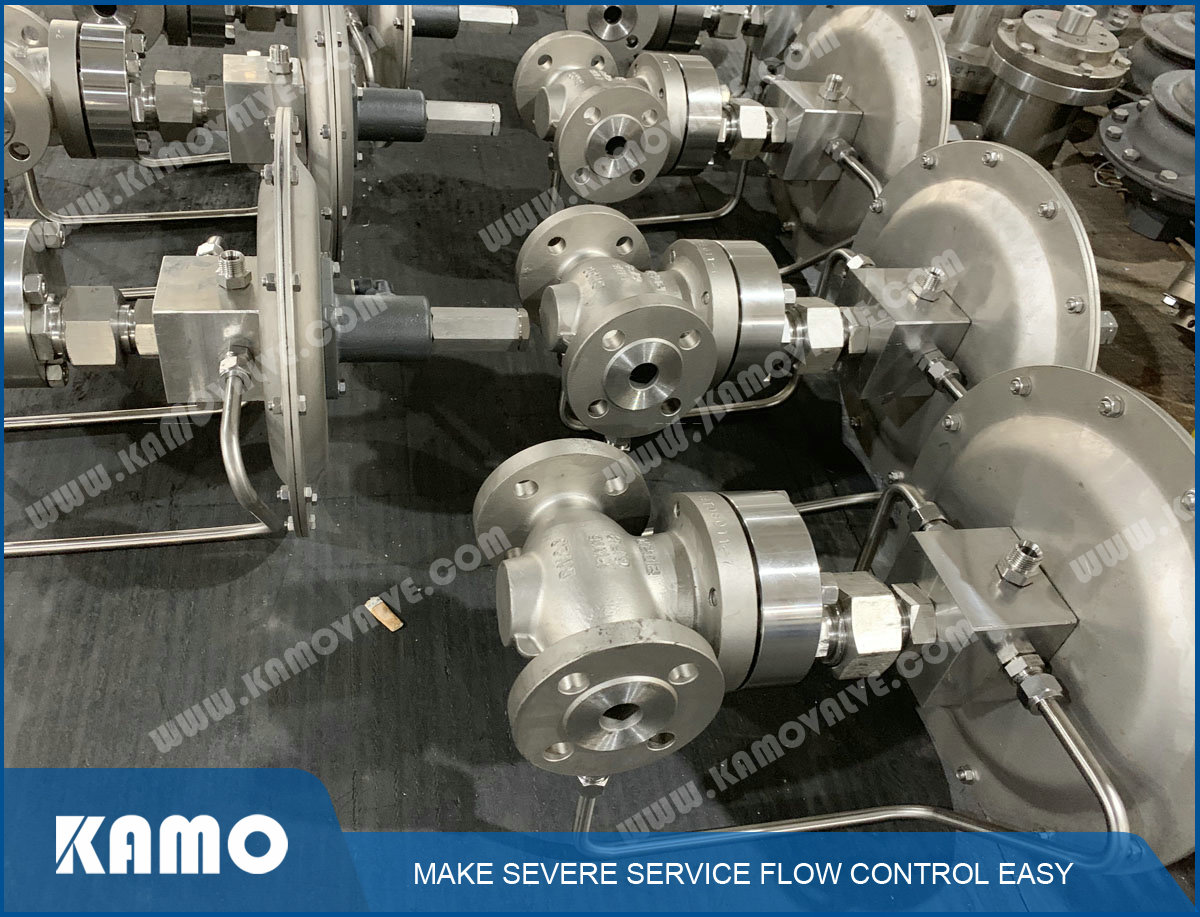

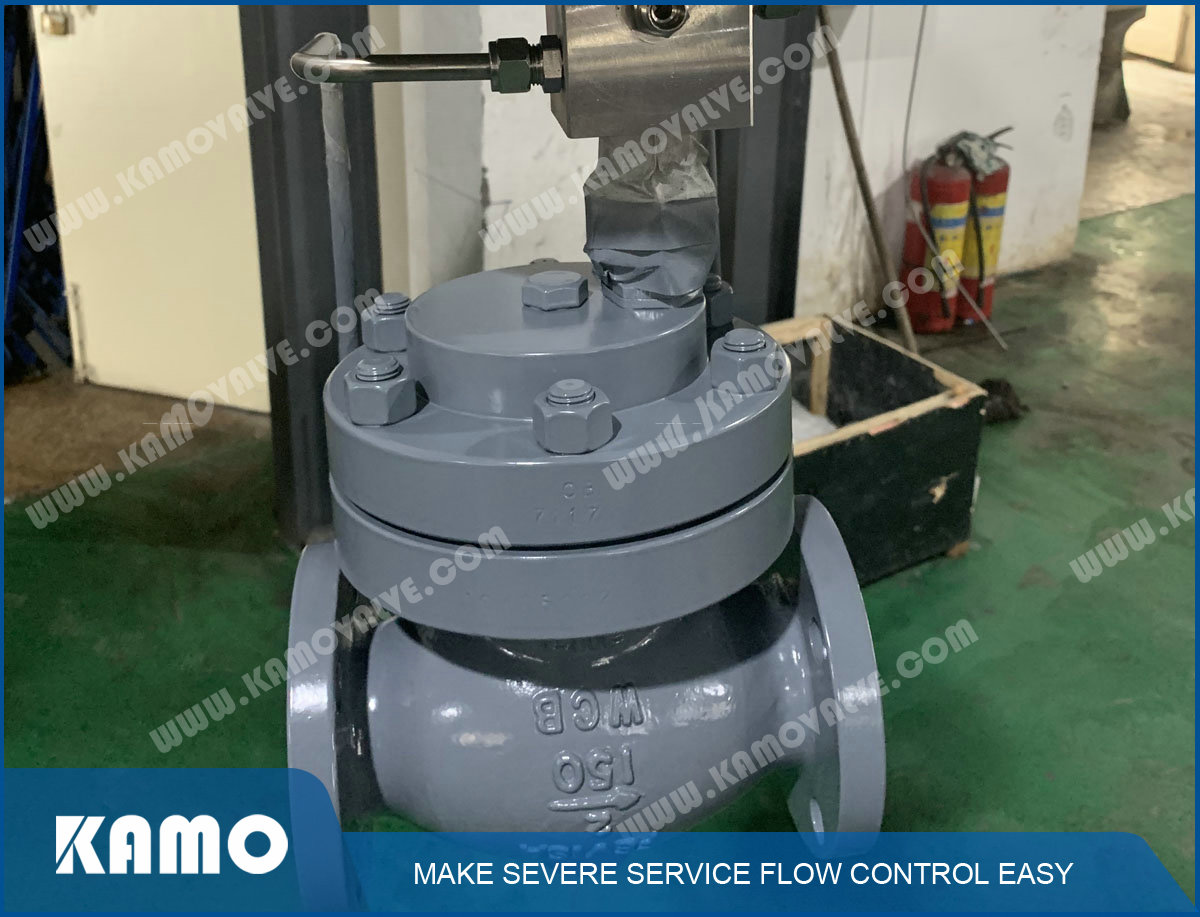

Micro pressure reducing regulator are specifically designed for tank blanketing applications. It can be applied to the micro-pressure control system of all kinds of gases, especially for micro-pressure nitrogen sealing system of middle and large storge tank. The lowest control pressure is 0.5KPa.
The micro pressure reducing regulators are used together with the breathing valves or the nitrogen relief regulators to form a set of tank protection device.
The inlet pressure range for micro pressure reducing regulator working normally is 2.0~8.0 bar(G)
Parameters
Size: 1/2"~4"（DN15~DN100）
Pressure Rating: ASME CLASS 150~300 (PN16~PN40)
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Seat Leakage：ANSI IV or ANSI Ⅵ(bubble-tight)
Setting Range:0.5~6.0kPa(G)
Connection Type:Flange,Welding,Thread
D13 Pilot operated regulators are typically used for these applications which need large flowrate or precise pressure control is required.Pilot operated pressure relief regulators are consisted of main valve and pilot valve,when the pilot valve detected the upstream pressure rises,it will respond quickly and accurately to open the pilot valve,after the pilot valve opening,the main valve will also been opened by the upstream pressure.Through above two paths,the regulator achieve the purpose of pressure relief.
