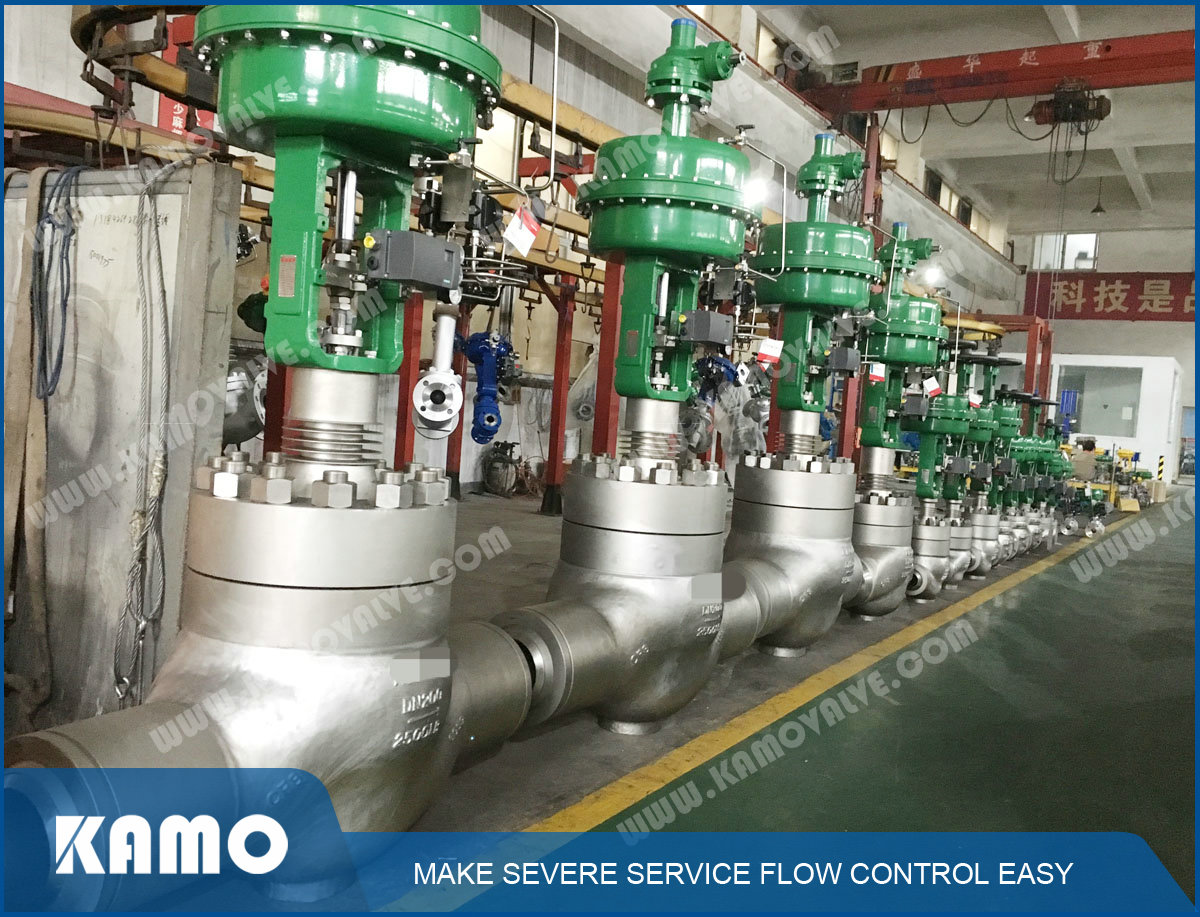

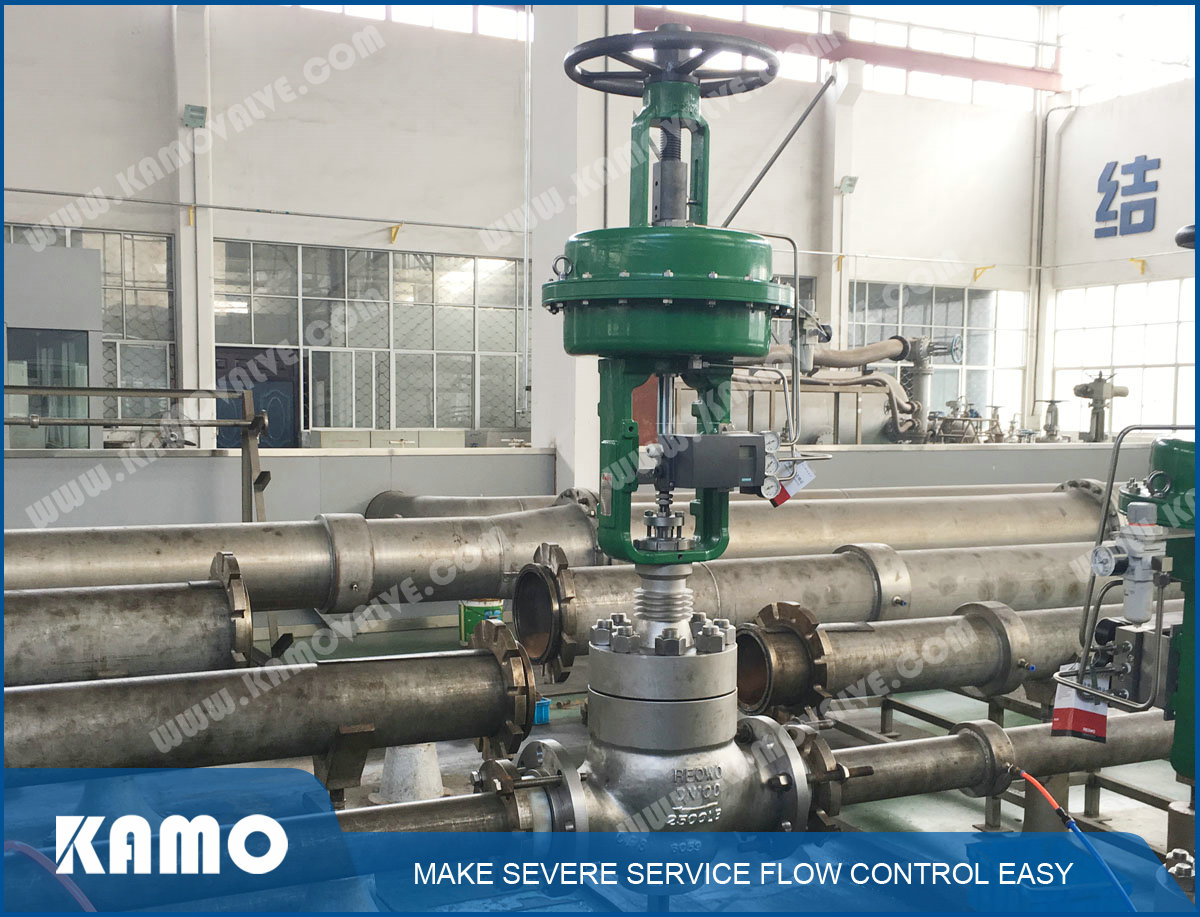

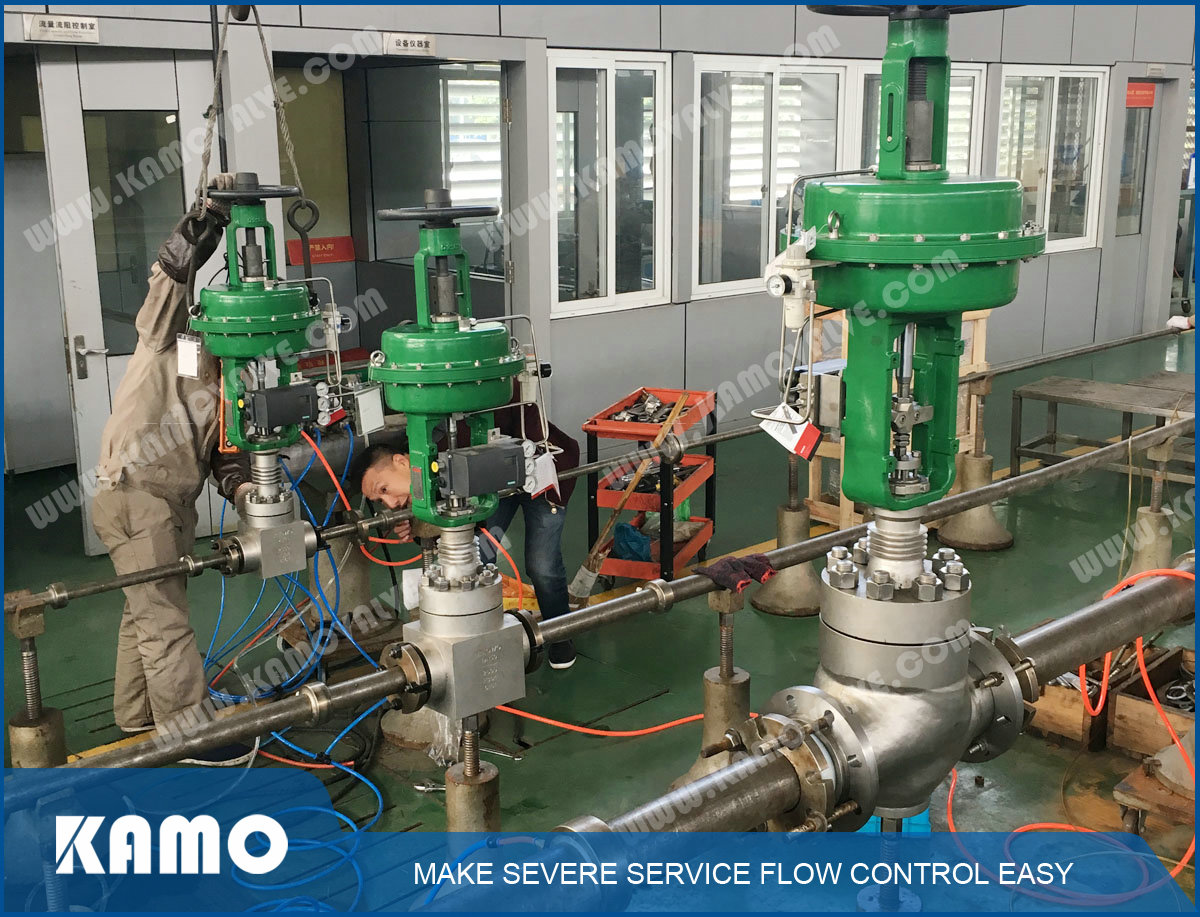

This series is fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug. For those severe fluid conditions that cannot be covered by this series, please select KAMO multi-stage type control valves.
Parameters
Size: 1 1/2"~12"(DN40~DN300)
Pressure Rating: ASME CLASS 900~2500 (PN160~PN420)
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Temperature Range:-196℃~230℃
Seat Leakage:ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type:Standard,Long-Extension
Actuator Type:Pneumatic,Electric,Manual
Connection Type:Flange,Welding
This series is fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug. For those severe fluid conditions that cannot be covered by this series, please select KAMO multi-stage type control valves.
