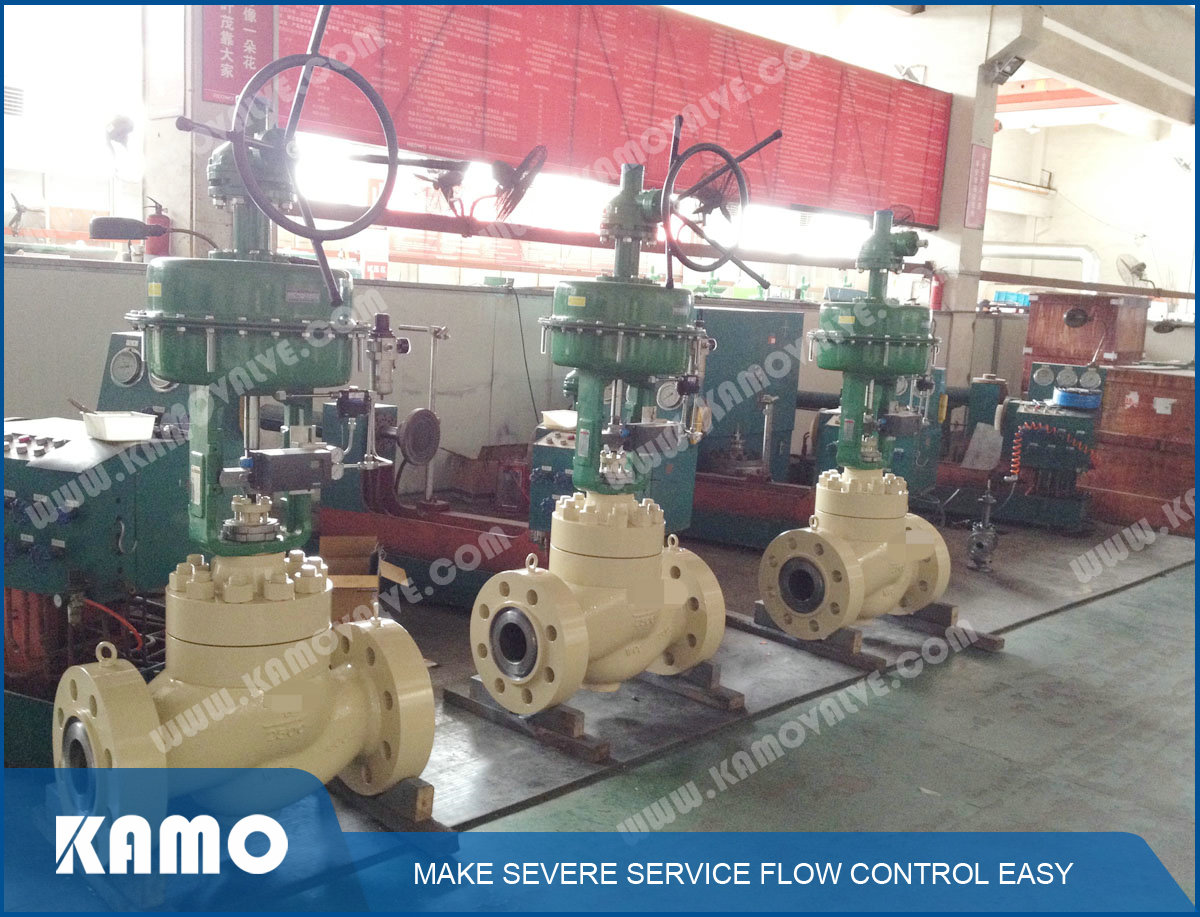

This Series provides control valves that meet low noise and anti-cavitation requirements by incorporating a multi-hole type cages, instead of the standard cages, in the 60T Series cage guided control valves. All the parts except the
multi-hole cage are interchangeable with the parts of the 10T Series accordingly. For those severe fluid conditions that cannot be covered by this Series, please select KAMO multi-stage type control valves.
Note:This series can not been used in the medium contains large solid particles.
Parameters
Size: 1 1/2"~12"(DN40~DN300)
Pressure Rating: ASME CLASS 900~2500 (PN160~PN420)
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Temperature Range:-196℃~230℃
Seat Leakage:ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type:Standard,Fin-Extension
Actuator Type:Pneumatic,Electric,Manual
Connection Type:Flange,Welding
This series is fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug. For those severe fluid conditions that cannot be covered by this series, please select KAMO multi-stage type control valves.
