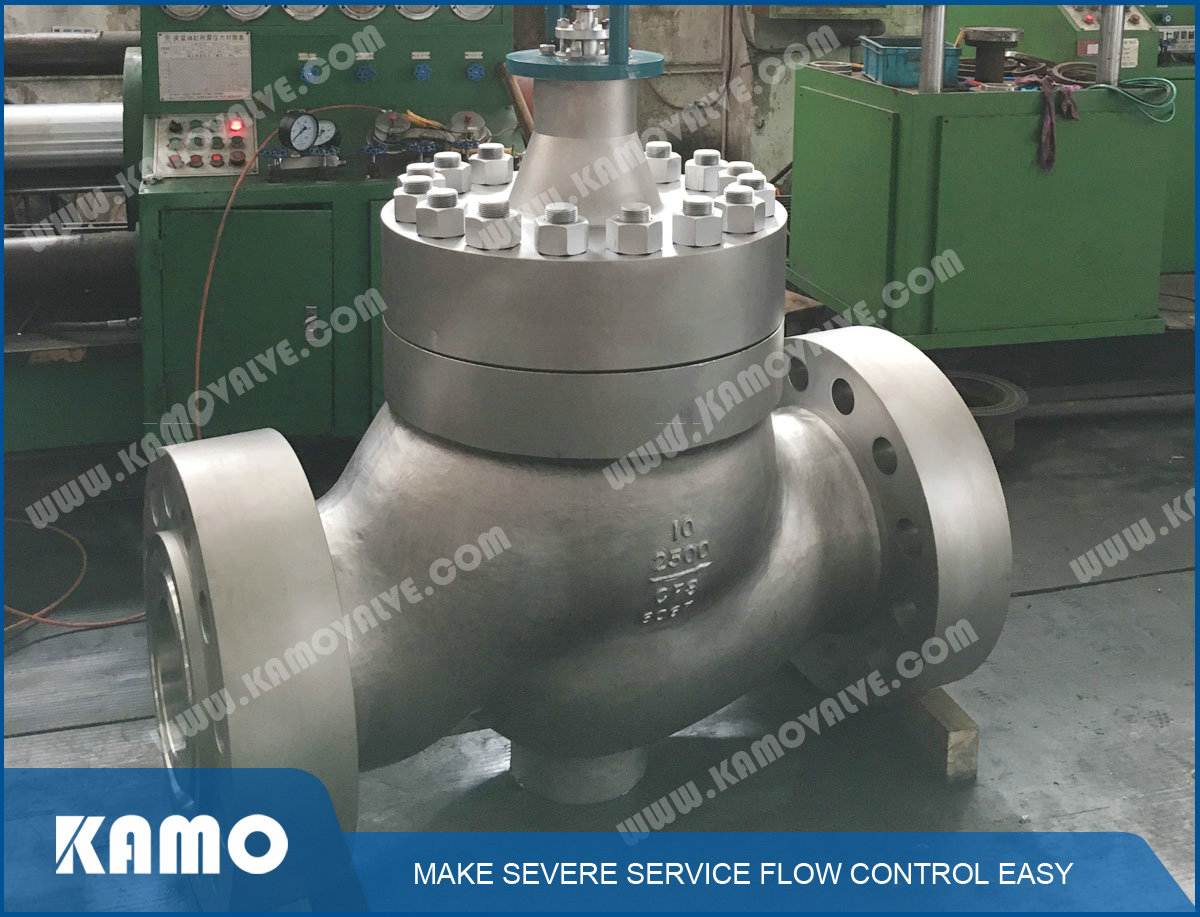

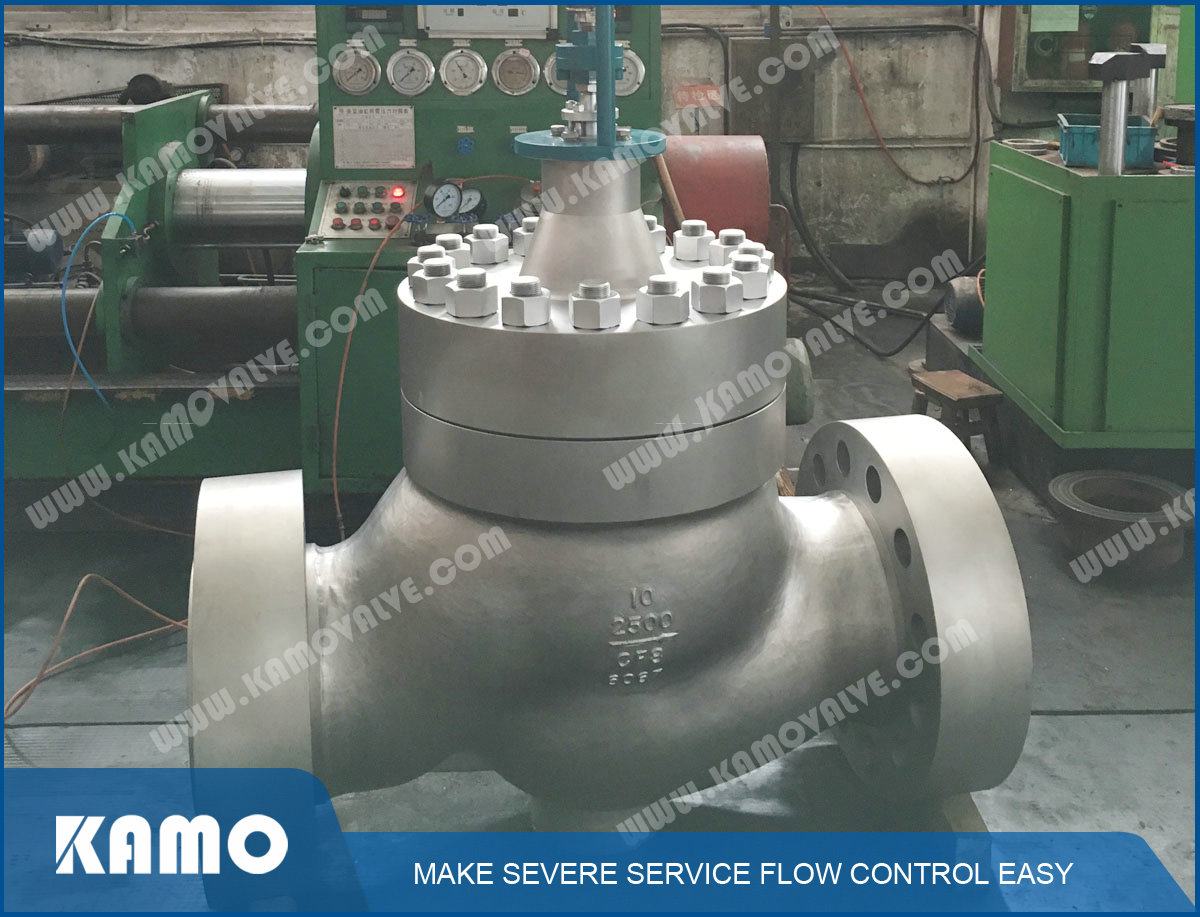

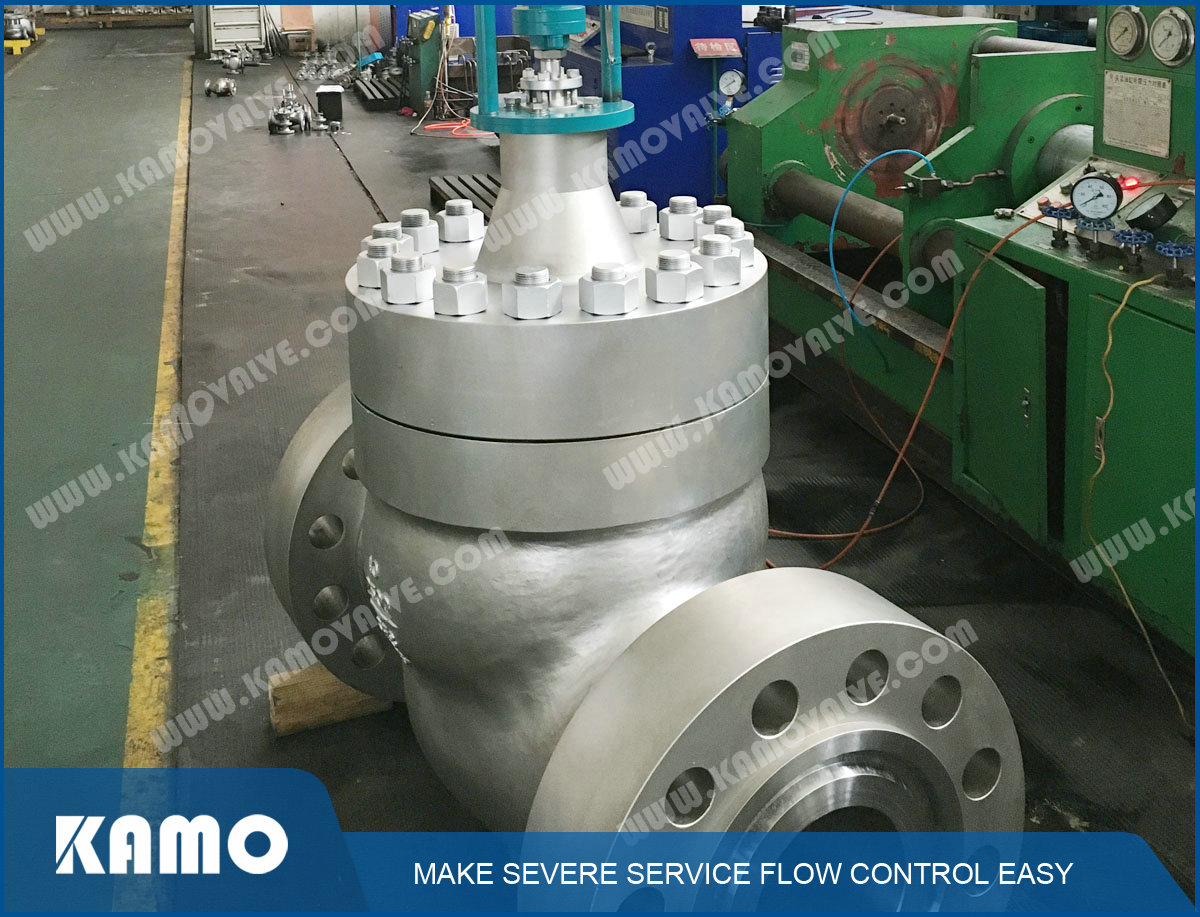

High Pressure Multi-stage Cage Guided Control Valve is mainly applied for flow control in critical conditions including high temperature and high pressure or high pressure difference. It can prevent fluid cavitation and flashing, reduce noise and erosion of valve trim due to high flow velocity. And it has a good control of slurry and viscous fluid including particles and impurities and a wide application in high temperature, high pressure and hydrogen device.
Parameters
Size: 1 1/2"~12"（DN40~DN300）
Pressure Rating: ASME CLASS 900~2500 (PN160~PN420)
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Temperature Range:-196℃~540℃
Seat Leakage：ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type：Standard,Fin-Extension
Actuator Type:Pneumatic,Electric,Manual
Connection Type:Flange,Welding
This series is fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug. For those severe fluid conditions that cannot be covered by this series, please select KAMO multi-stage type control valves.
