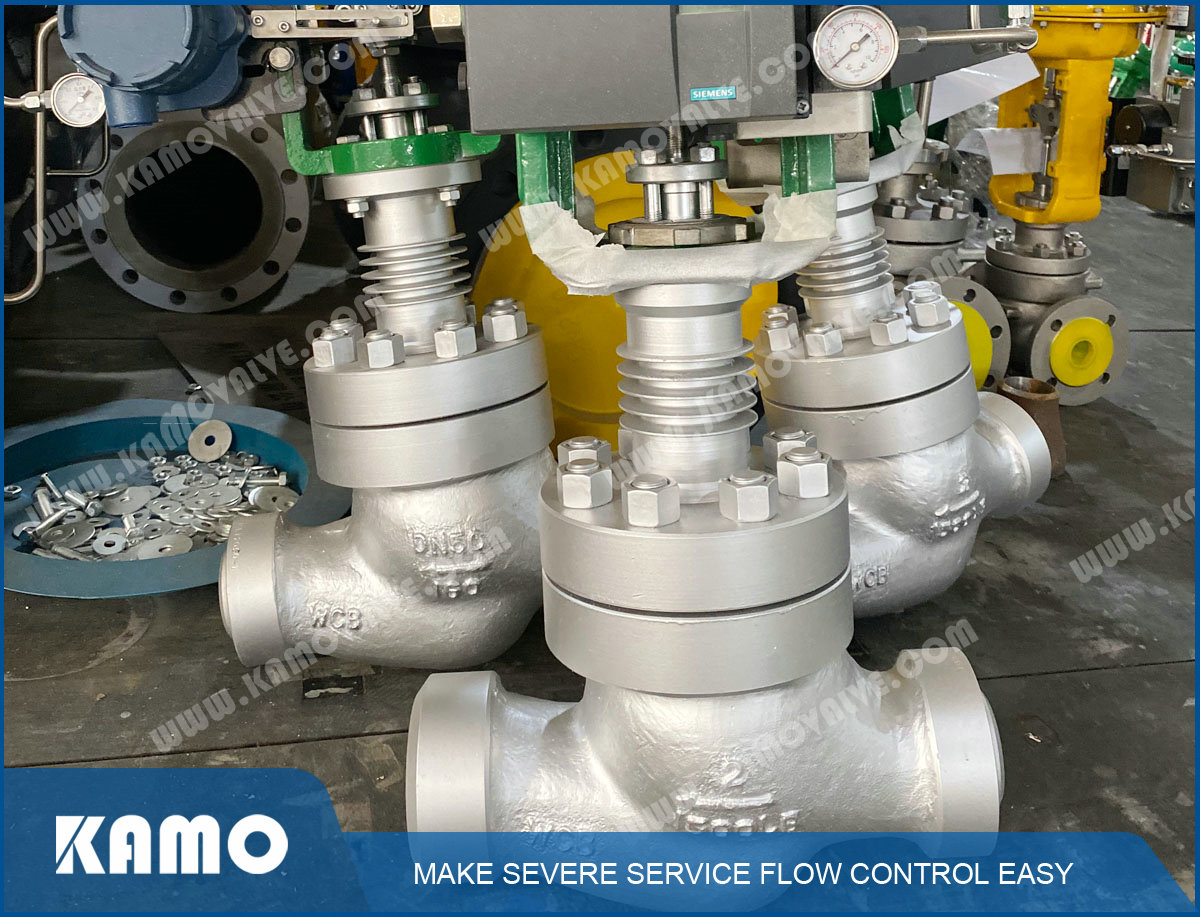

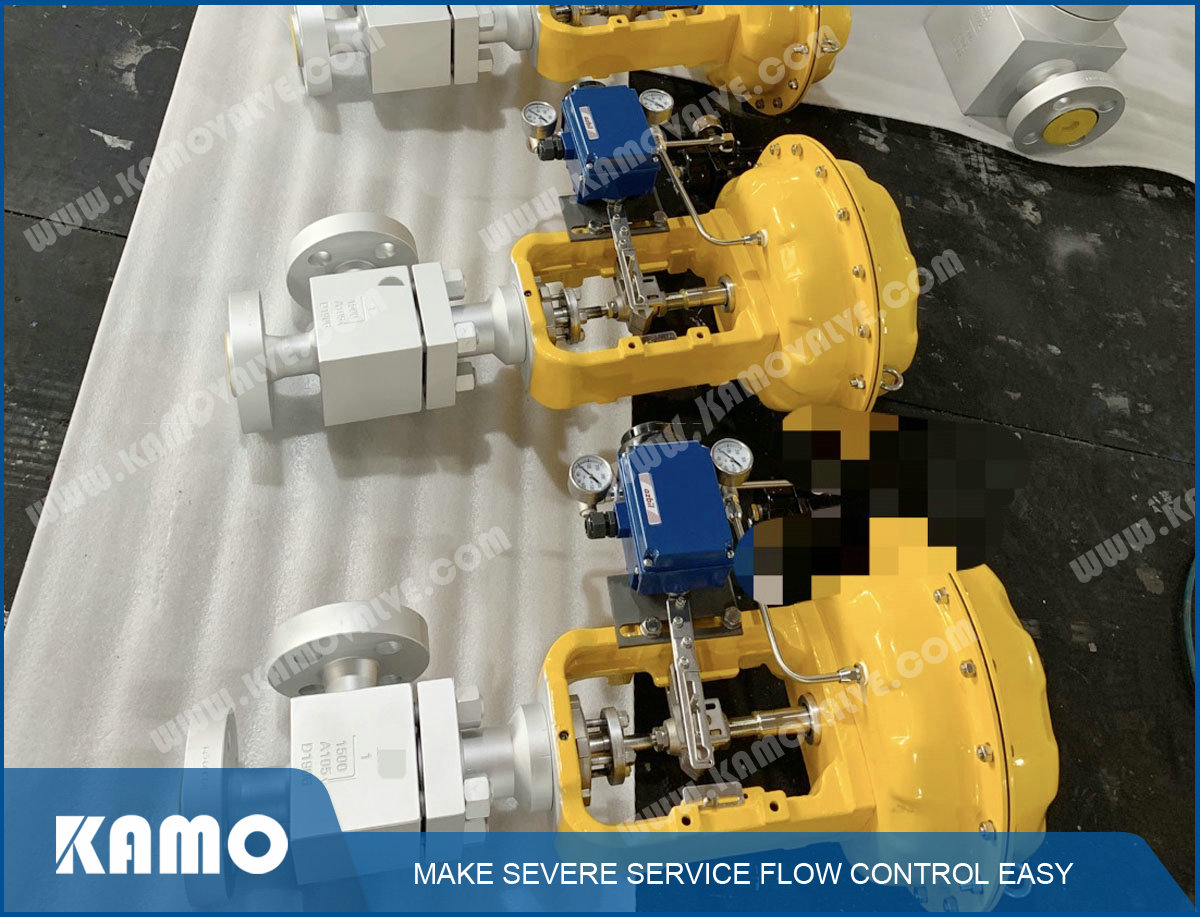

High Pressure Single Seated Control Valve have a top guided unbalanced trim structure,It is a compact and simple structure, easy operation and maintenance which can be used under various applications, especially under normal pressure and normal pressure drop. Valves of this type are the most economical and reliable. The application of this series is the high pressure condition required small Cv.
Parameters
Size: 1/2"~2"（DN15~DN50）
Pressure Rating: ASME CLASS 900~2500 (PN160~PN420)
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Temperature Range:-196℃~540℃
Seat Leakage：ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type：Standard,Fin-Extension,Long-Extension,Bellows,Steam Jacket
Actuator Type:Pneumatic,Electric,Manual
Connection Type:Flange,Welding
This series is fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug. For those severe fluid conditions that cannot be covered by this series, please select KAMO multi-stage type control valves.
